The Cooker and its Parts
Bild_2-2-0
Dimensions and Weight
Ls: Dimensions at the top:
63 x 63 x 39 cm - Weight approx. 18 kg
Lw: Dimensions at the top:
63 x 99 x 39 cm - Weight approx. 26 kg

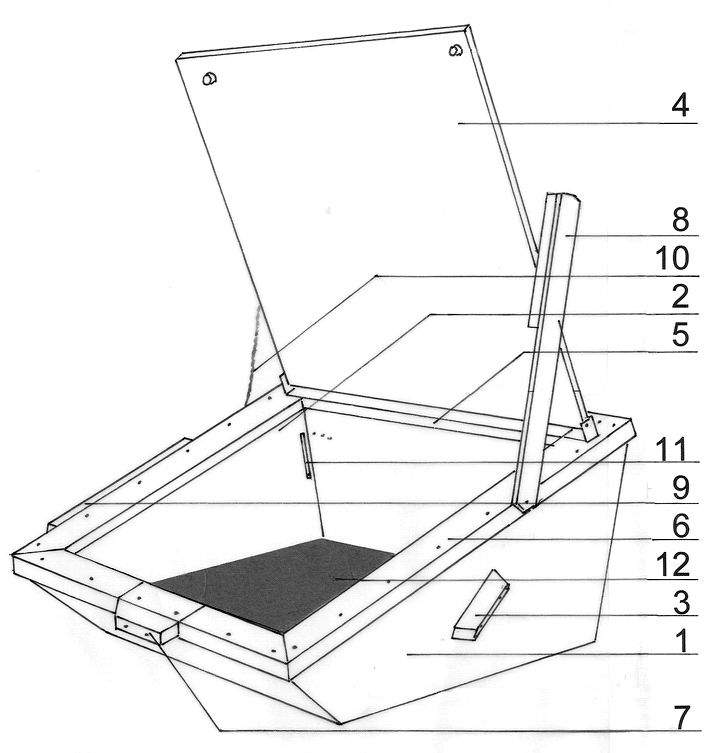

Cooker Parts
  1
Insulated outer box
  2
Inner box (tub)
  3
Box handles
  4
Reflective cover
  5
Wooden glass-frame with double glassing
  6
Metall glass-frame
  7
Glass-frame handle
  8
Support of reflektive cover
  9
Support of glass-frame
10
Safety chains
11
Bimetal gauge
12
"Hot plate"

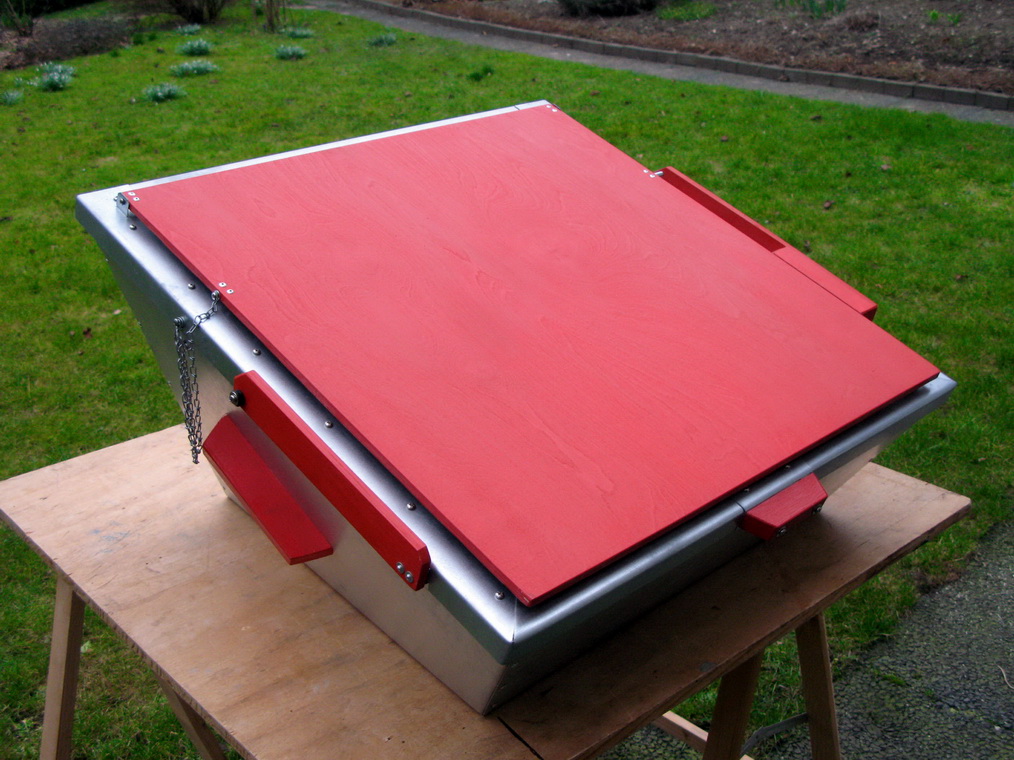

Bild_2-2-1
The Lazola consists essentially of three Parts:
  • a well-insulated inner box (1). The heat from the captured solar radiation is collected within. A black metallic "hot plate" conducts it to the cooking pot. (12).
  • a tightly closing double-glazed cover (6). It prevents the heat from escaping.
  • a reflective cover (4). When opened, it reflects additional sunlight into the cooker. When closed, it helps to keep cooked food warm for hours
